Adding Ambient Sounds to your Discord Server On LInux

I’m a Dungeon Master! I don’t mean that in the S&M sense! As in the game Dungeons & Dragons (https://dnd.wizards.com), where I run a weekly game as well as take part in a couple of campaigns as a player. It’s a lot of fun and something I would definitely recommend you have a go at if you are so inclined

There is a vast amount of tooling & tech out there that allows you to play remotely such as Virtual Table Tops, Character builders, online resources, etc. One such tool that gets used quite often is a chat service called Discord (https://discord.com) It’s really useful and allows you to easily be part of and manage communities of people…. Think IRC & Slack, but more up to date than IRC and less “workish” than Slack.

As part of my online games I like being able to have ambient music to match the surroundings the players are traveling through, as well as some active elements thrown in for good measure. This is possible in a few different ways using discord but the way I want to set it up can be somewhat frustrating to set up. Let me explain:

I have taken a shine to two tools in particular… Syrinscape (https://syrinscape.com) and Table Top Audio (https://tabletopaudio.com). The former being a windows app with an nice interactive mixing UI that allows you to combine and generate unique sounds, the latter being a lovely web service that has some fantastic loop-able ambient background tracks all 100% free.

I am wanting to be able to pipe the audio from these two services into my Discord server so that I can make use of the fantastic audio they offer. This is the journey of how I managed to get this working, partly as a reminder for me if I ever need to do this again and also to help others that may be looking to do the same.

My Setup

I’ve been a big fan of Ubuntu for a number of years, but since 20.04 I’ve found that the shine I’ve had for it has waned significantly. I wont go into the why and wherefore of it but I’m now running the excellent Pop_OS! from System76 (https://pop.system76.com) its an Ubuntu variant but with the bits I dislike removed. So assume that anything I’m doing is compatible with Ubuntu 20.04.

The Requirements

The ideal solution should see me being able to have a single instance of discord running that allows me to still use my mic to be able to talk, and to have my selected background playing with the ability to control the volumes of both the mic and the background independently.

Finding A Solution

A lot of googling led me to realise that there isn’t a perfect solution to fit my brief. The hardest part being not actually knowing what to google and a lot of the terminology being somewhat foreign to me as I’m not much of an audio engineer. However I finally stumbled upon a blog post by Emma Anderson dated June 2016 and thankfully it gives me a lot of the heavy lifting that I needed along with some explanation of what I’m trying to achieve, though I’m hopefully going to be more verbose here in what this all means and how it works.

PulseAudio

The first thing we need to do is make sure the packages for pulseaudio and pavucontrol are installed. These will allow us to manipulate the way we capture sound and redirect it to the appropriate inputs and outputs.

apt install pulseaudio pavucontrol

Virtual Input & Virtual Mic

What we are going to try to achieve, is to create two new elements inside of Pulseaudio;

  1. a Virtual input that we can channel the applications creating our background sounds which will allow us to control the volume independently.
  2. a Virtual Microphone that we can channel our both our normal microphone and the new Virtual input into.

By creating these elements we can then use the pavucontrol tool to select what needs to be redirected where. so lets get started.

pactl load-module module-null-sink sink_name=VirtualInput
pacmd update-sink-proplist VirtualInput device.description=VirtualInput
pacmd update-source-proplist VirtualInput.monitor device.description=VirtualInput.monitor

Here we have two commands, the first will create our new Virtual Input as what is referred to as a “null sink”. This on its own is not really very useful for us as we also need what is referred to as a “source”, thankfully when we run this command it also created a new “source” for us.

On it’s own that should be more than enough, but running the 2nd & 3rd command makes our live a lot easier because it will apply some very useful labels to both of the newly created sink and source. In this case VirtualInput for the sink and VirtualInput.monitor for the source. Having these in place makes it a lot simpler to configure things with pavucontrol.

Next we need to create our Virtual Mic using some very familiar looking commands.

VM=$(pactl load-module module-null-sink sink_name=VirtualMic)
pacmd update-sink-proplist VirtualMic device.description=VirtualMic
pacmd update-source-proplist VirtualMic.monitor device.description=VirtualMic.monitor

again we have now created a new new pair of sink and source with some nice easy to recognise labels that we will use when we start working with pavucontrol.

The final piece to our puzzle is creating the components that will let us define a connection from the VirtualInput and our physical microphone to the newly created VirtualMic. We do this with two identical commands;

pactl load-module module-loopback sink=VirtualMic
pactl load-module module-loopback sink=VirtualMic

we now have all of the elements that we need to configure everything to work.

Connecting it all together

I’m now going to assume you have logged yourself into the Discord client and fired up your copy of Syrinscape… but you sould just as easily swap out these for something else of your choice.

Now we can start pavucontrol either from the command line or you can look for it in your applications menu. Once it loads you will hopefully be presented with something that looks like;

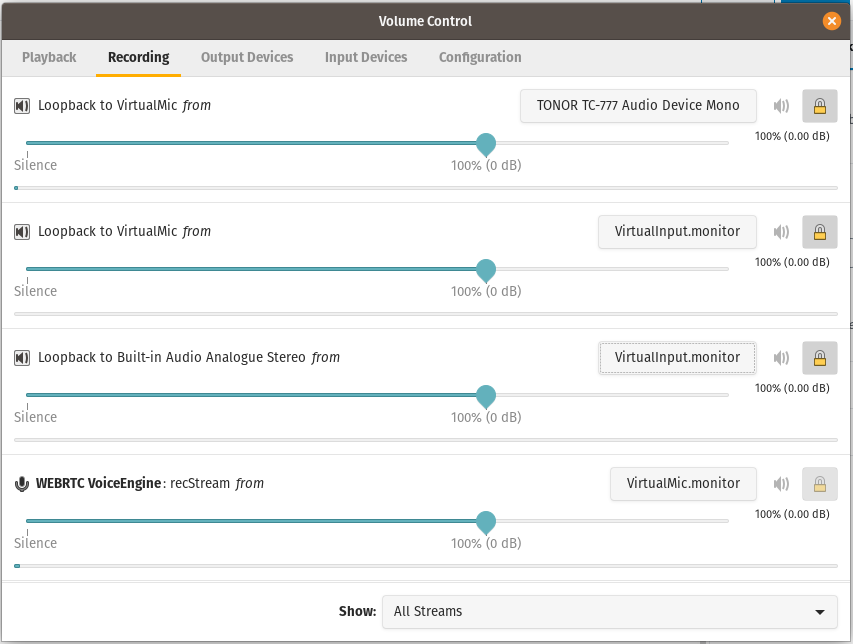

For this next step I am specifically starting on the “Recording” tab of pavucontrol this is to allow us to set up what is going to be captured. I have updated the drop-down at the bottom left to show “All Streams” as this will make it quicker to configureā€¦ Starting at the top we have two entries for;

Loopback to VirtualMic from: These are the result of the last two pactl command we ran previously. They are going to allow us to capture the audio streams from via both Built-in Audio Analogue Stereo which is how my Operating system has labelled my physical microphone on the “Recording” tab, and our newly created VirtualMic.

and a single entry for;

WEBRTC VoiceEngine: Once you connect to a voice channel in discord this will appear and it allows us to specify which of our devices it should be reading the audio feed from. For our purposes we have this set to our VirtualMic so that we can have our mixed audio feeds

Now that recording is configured we can sort out our playback.

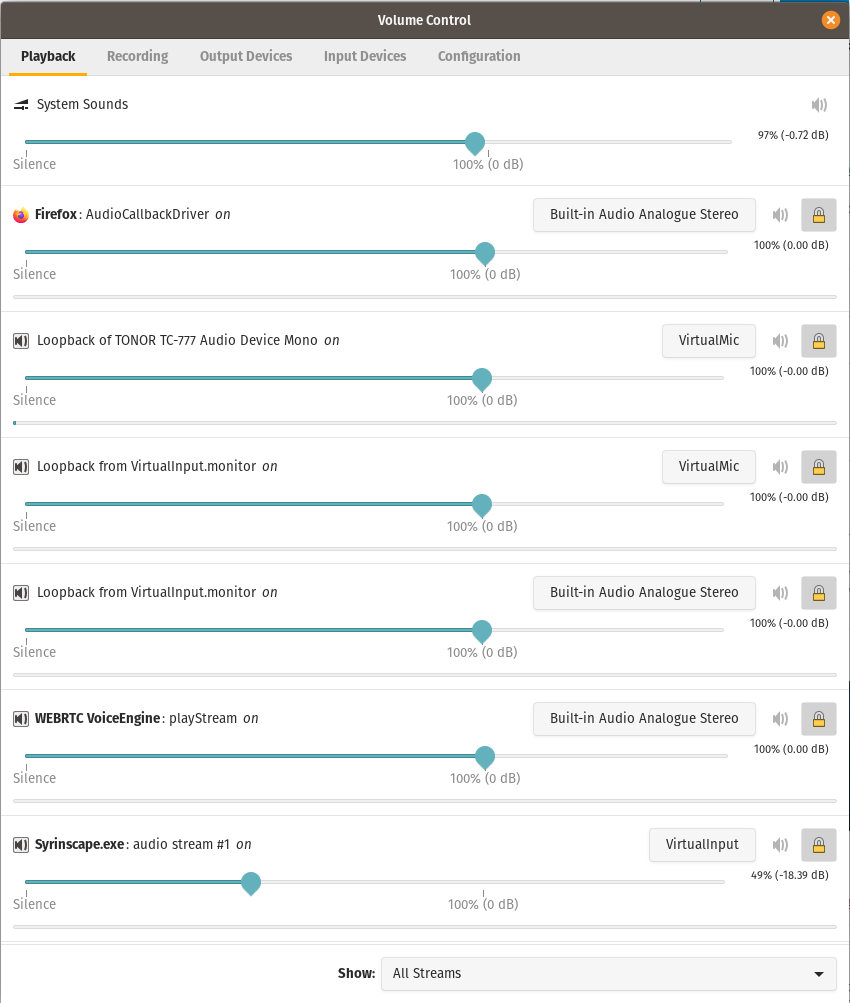

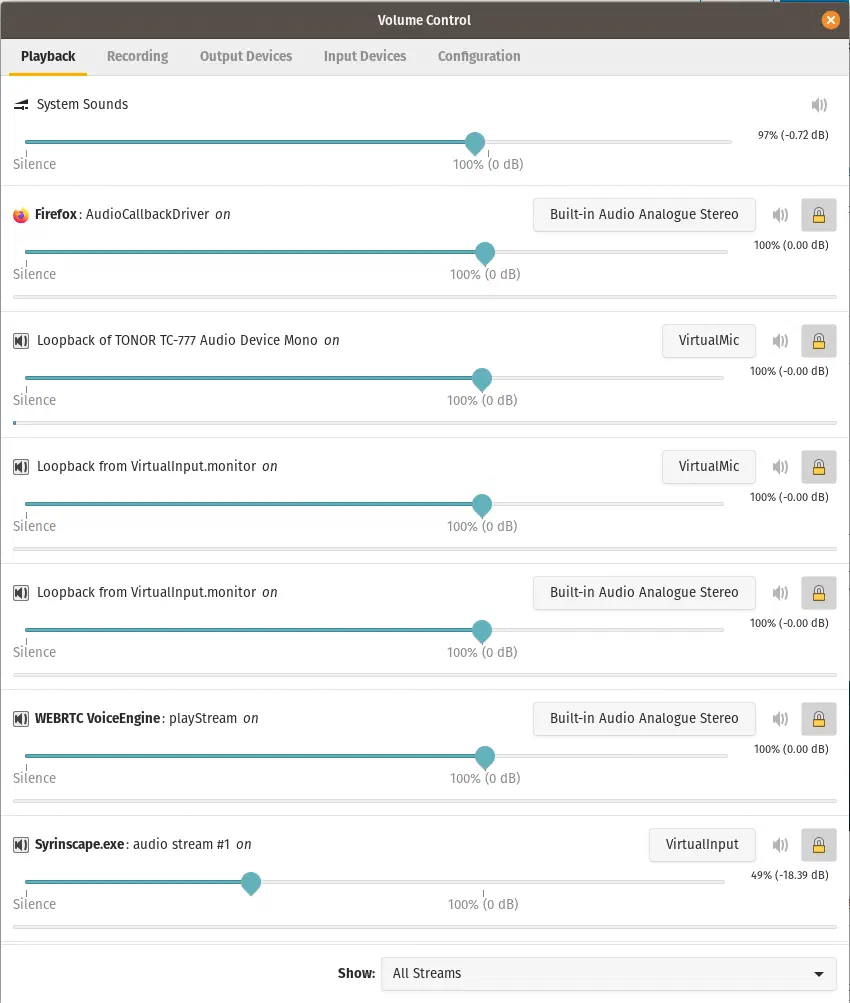

Here we can see the “Playback” tab of pavucontrol, again set to show “All Streams”. This time I’m going to run through the elements here starting from the bottom of the list and working my way up…

WEBRTC VoiceEngine: This again is our connection to a Discord voice channel, as you can see I have this set to play back all of its output via Built-in Audio Analogue Stereo which is how my Operating system has labelled my physical speakers.

Syrinscape.exe: This is the Syrinscape application, that I run through PlayOnLinux (https://www.playonlinux.com), and I will use to generate all of my lovely ambient sounds. This is set to play all of its “audio stream” on our VirtualInput.

The next two items in our list, providing you have configured the Recording tab first should look as in the image. Changing the “Loopback to VirtualMic” entries on the Recording tab will change the labels of these two entries.

Loopback of VirtualInputMonitor on: is where we now feed what is being recorded by our VirtualInput in this case the Syrinscape app and redirect it into our VirtualMic.

Loopback of Built-in Audio Analogue Stereo on: is where we now direct the input from our physical microphone and feed that straight into our VirtualMic.

The other entries in the list here are for firefox and the system itself and are not relevant to what we are trying to achive.

Winner Winner Chicken Dinner

That’s is effectively all we need to do… From here on in anything you play via the Syrinscape app will be merged with your microphone input and passed to Discord. You can then use the volume sliders in pavucontrol to adjust the levels of all the inputs to suit your own personal preference.

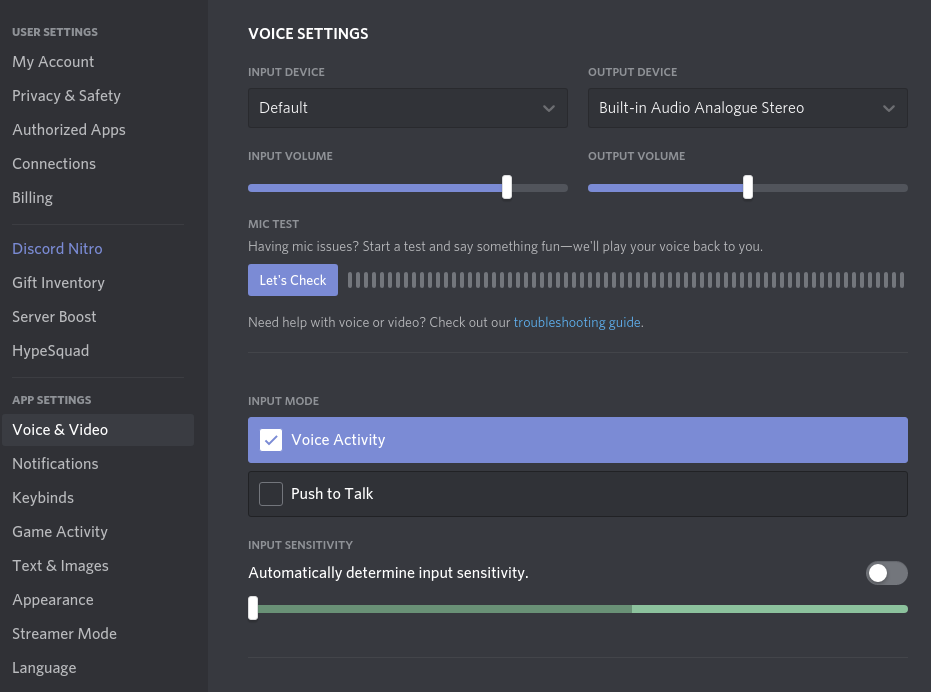

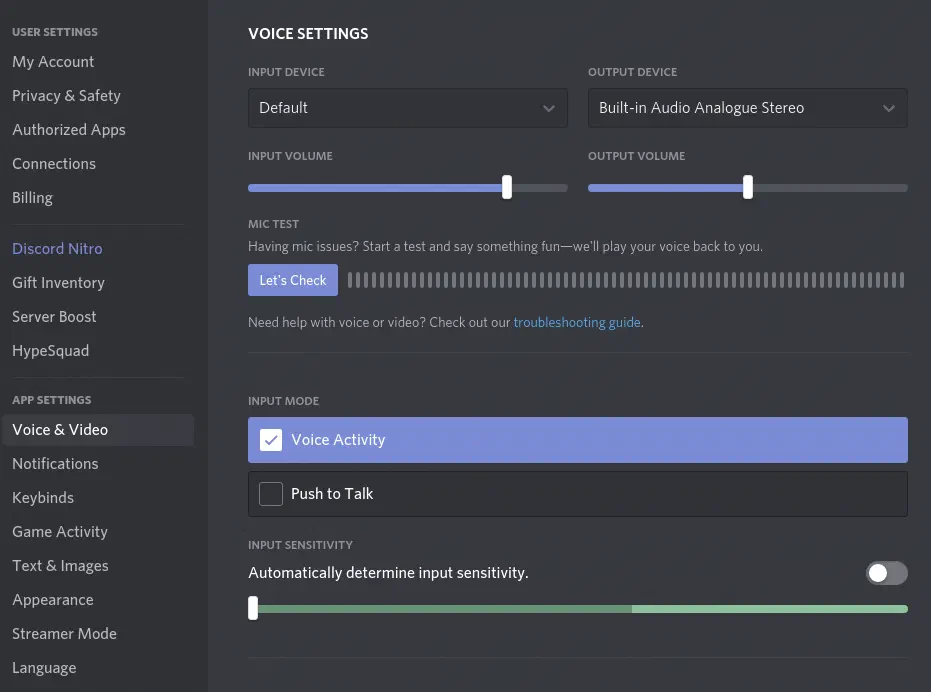

Though I will make a few small suggestions about how to configure your discord settings. You shouldn’t need to make any adjustments to the input and output devices which should now be set to Default as your “Input Device” if you change this it will override the changes we have made and you will need to go back to the Recording tab of pavucontrol and switch WEBRTC VoiceEngine back to InputMic , but…

I would recommend disabling automatic input sensitivity and lowering the sensitivity slider all the way down to -100dB… this is to allow for the potential low and subtle tones and ambient elements you may want to play… be warned though it makes it very very easy for an low quality microphone (such as the Built-in Audio Analogue Stereo microphone found on my laptop) to pick up other noises such as your systems fans, mouse clicks and typing. A simple way to combat this is to get a reasonable quality external cardioid condenser microphone which eliminates a lot of this unwanted background.

One last thing

That should be it for now… I’ll leave you with one final thing. This is a simple little bash script I threw together that I run in can a terminal to create all the components and if I want will then clean them all up and remove them. If you really want you could set it up as a permanent implementation, but I’ll let you google for that solution!

#!/bin/bash

VI=$(pactl load-module module-null-sink sink_name=VirtualInput)
pacmd update-sink-proplist VirtualInput device.description=VirtualInput
pacmd update-source-proplist VirtualInput.monitor device.description=VirtualInput.monitor

VM=$(pactl load-module module-null-sink sink_name=VirtualMic)
pacmd update-sink-proplist VirtualMic device.description=VirtualMic
pacmd update-source-proplist VirtualMic.monitor device.description=VirtualMic.monitor

VML1=$(pactl load-module module-loopback sink=VirtualMic)
VML2=$(pactl load-module module-loopback sink=VirtualMic)

echo "All moduels have been loaded have been configured! Run pavucontrol to configure your devices."

cleanup() {
    while true; do
        read -p "Finished? do you want to clean up and remove modules [Yn]: " yn
        case $yn in
            [Yy]* ) return 0;;
            [Nn]* ) return 1;;
            * ) echo "Please answer yes or no.";;
        esac
    done
}

if cleanup; then
    pactl unload-module "$VML2"
    pactl unload-module "$VML1"
    pactl unload-module "$VM"
    pactl unload-module "$VI"
    echo "All modules have been unloaded"
else
    echo "Modules $V1, $V2, $V1L1, $V1L2 & $V1L3 remain loaded"
fi
